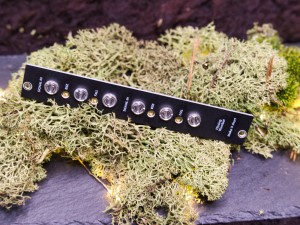

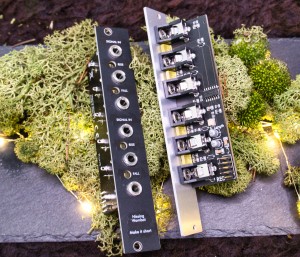

The HS-112 contains two gate/trigger converters in one module. From an incoming gate signal, two trigger signals are generated: one at the start of the gate and one at the end. Especially useful with clock dividers that output extended gate signals.
Features
- Two independent channels
- Two trigger outputs per channel (start + end of gate)
- Ideal for clock dividers with long gate signals (e.g. A-160-1)
Specifications
| Width | 4 HP / 4 TP / 20 mm |
|---|---|
| Module depth | 28 mm |
| Channels | 2 |
| Trigger outputs per channel | 2 |
| Current draw +12V / −12V | 30 mA / 15 mA |
| Current draw 5V | 0 mA |
| UVP / RRP | €59,99 incl. VAT |
| EAN | 4262373470026 |
