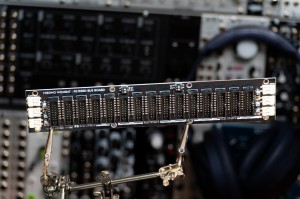

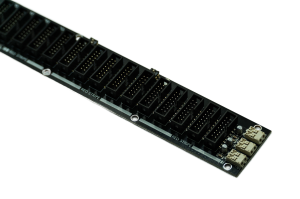

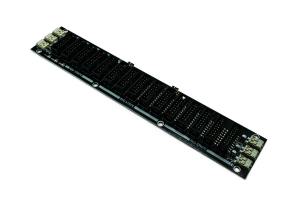

The HS-105v2 supplies up to 15 Eurorack modules simultaneously with filtered power. Two capacitors per voltage rail close to the quick-connect terminals reduce noise. Three LEDs indicate the status of each voltage rail.
Features
- 15 module connectors (16-pin)
- Two capacitors per voltage rail for noise filtering
- Three LED status indicators (one per rail)
- CV and Gate pins switchably linked in groups of five modules
- Quick-connect terminals plus M4 screw holes
- Mount with M4 screws or double-sided tape
- Reverse polarity protection on all module connectors
Specifications
| Dimensions | 24 cm × 5 cm (1,4 cm height) |
|---|---|
| Module connectors | 15 × 16-pin |
| Capacitors | 12 total (6 per connector side) |
| Max. cable gauge | 1 mm / 18 AWG, max. 2,5 A |
| UVP / RRP | €39,99 incl. VAT |
| EAN | 4262373470033 |
