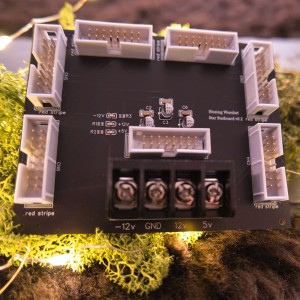

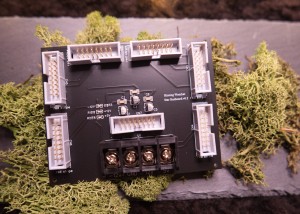

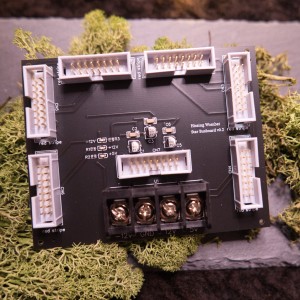

The HS-100 is a Eurorack bus board in star topology for optimal isolation of connected modules. It provides six plus one 16-pin module connectors and can be powered via screw terminals or a 16-pin connector.
Features
- Star topology for optimal isolation of connected modules
- 6 + 1 module connectors (16-pin)
- Reverse polarity protection on all module connectors
- Six filter capacitors integrated
- Three status LEDs
- CV and Gate pins connected throughout
Specifications
| Dimensions | 7,6 × 9,8 cm (1,8 cm height) |
|---|---|
| Module connectors | 6 + 1 × 16-pin |
| UVP / RRP | €29,99 incl. VAT |
| EAN | 4270002676527 |
| Status | Discontinued |
